(Directions supplied with panel from Abingdon Spares)
Click on images for larger view.

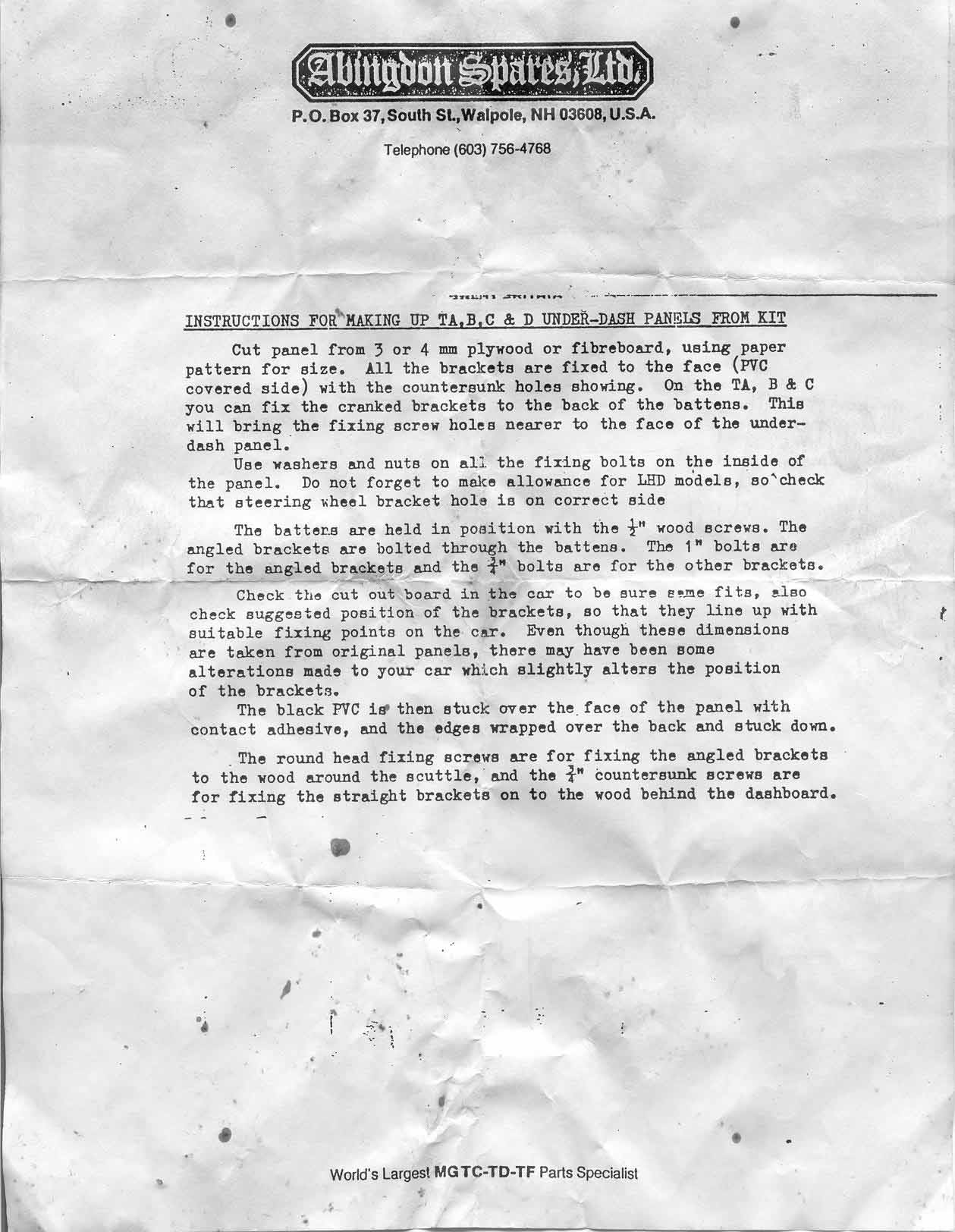

These are the directions received from Abingdon Spares with the under-dash shield that I purchased from them. Their part number is 63-085b.
Click here for instructions in Adobe .pdf form.

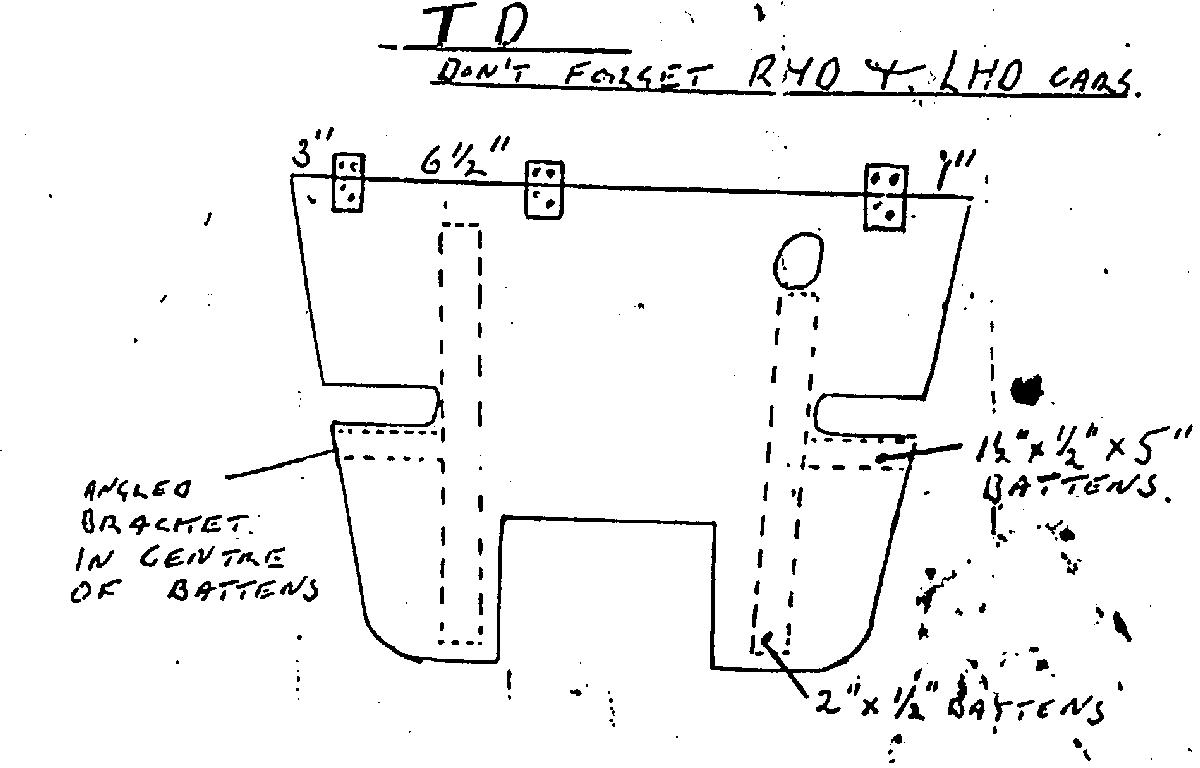

Here is the sketch that accompanied the above directions. The sheet also has a sketch showing the directions for installation in a TC.
Here are the parts as received. Not shown is the piece of black vinyl for covering the panel.
