A PhotoShop file created by Joe Olson This is a link to allow you to download a PhotoShop file
that will allow to see a late TD wiring diagram with the various
wire colors shown as separate layers in a display. Please note
that you must have PhotoShop in order to be able to take advantage

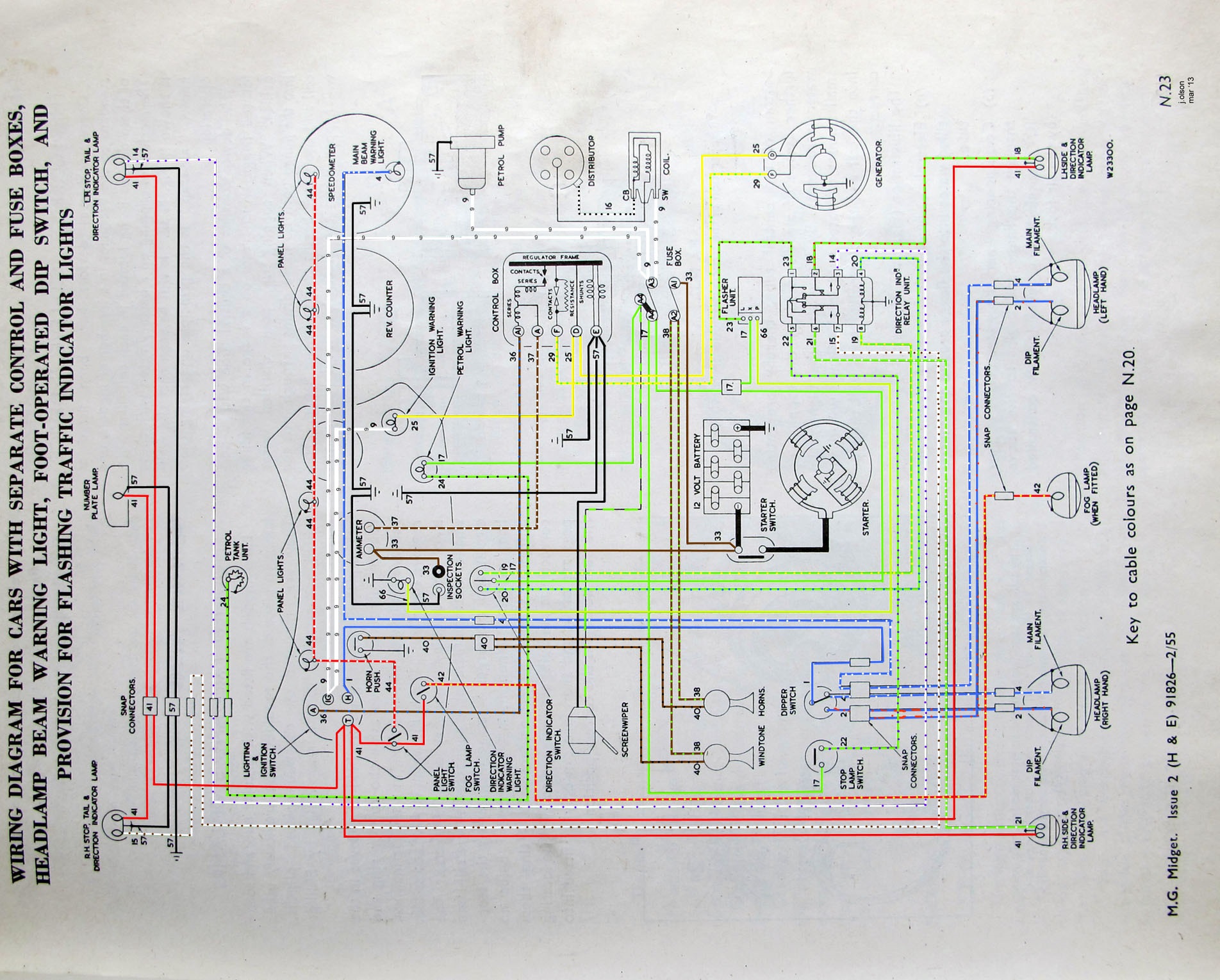

of the program. Below is a copy of the wiring diagram in all
of the colors. Please note that the names of the involved files have been
changed from those of Joe Olson's originals through the addition of
hyphens between the various words in the file names. This program is the property of Joe Olson and is being presented
here in Ttalk with Joe's permission. Bud
Ttalk.info
Multilayer Colored TD Wiring Diagram
