Installation of Brake Servo into MGTD
by
David Tinker

David Tinker can be contacted via email by clicking email to David Tinker


I fitted a remote servo to my 51 TD over 10 years ago and have been very please with it. The servo is fitted on the L/H side of the car in the space above the rear axle. The manifold is tapped at the centre and piped with 1/2" copper pipe along the chassis but with vacuum hose at each end for flexibility.

Manufacturer Details



Images by David Tinker

Adapter from copper to vacuum hose:

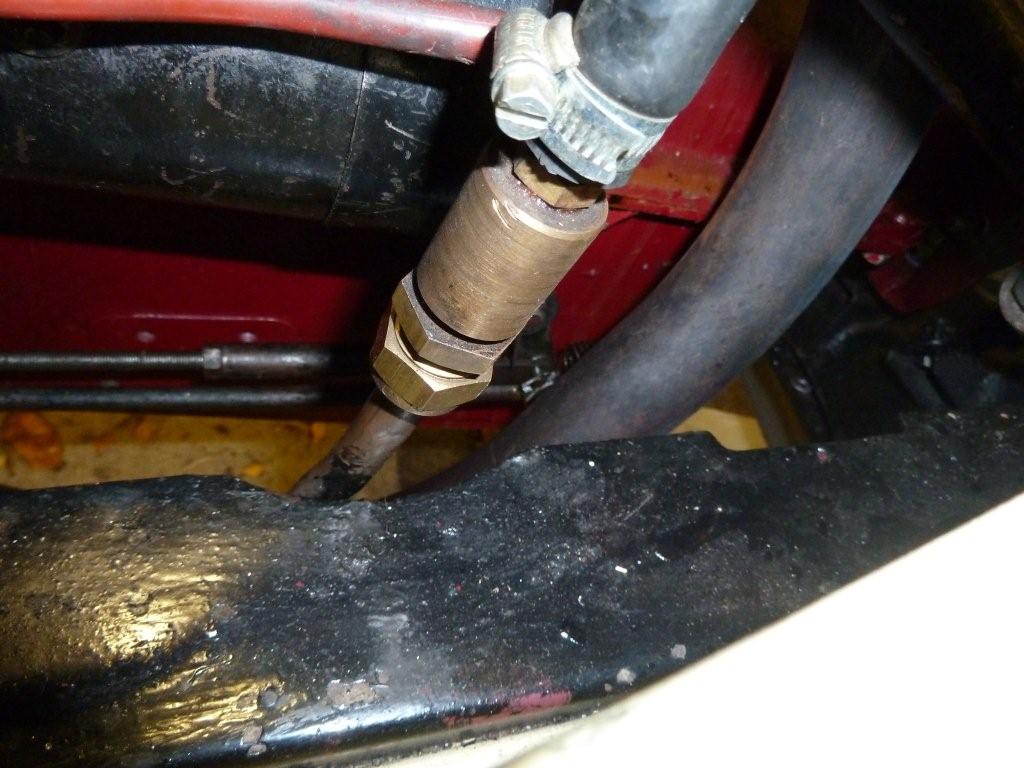

Adapter from vacuum hose to copper at front:

Servo mounting brackets:



Servo mounting brackets, again:

Tapping at center of manifold:

Vacuum non-return valve and Ms pipe extension:
