Images taken by Jim Northrup while disassembling Dynamator from Mort Resnicoff.

Images are thumbnails, click on image to enlarge it

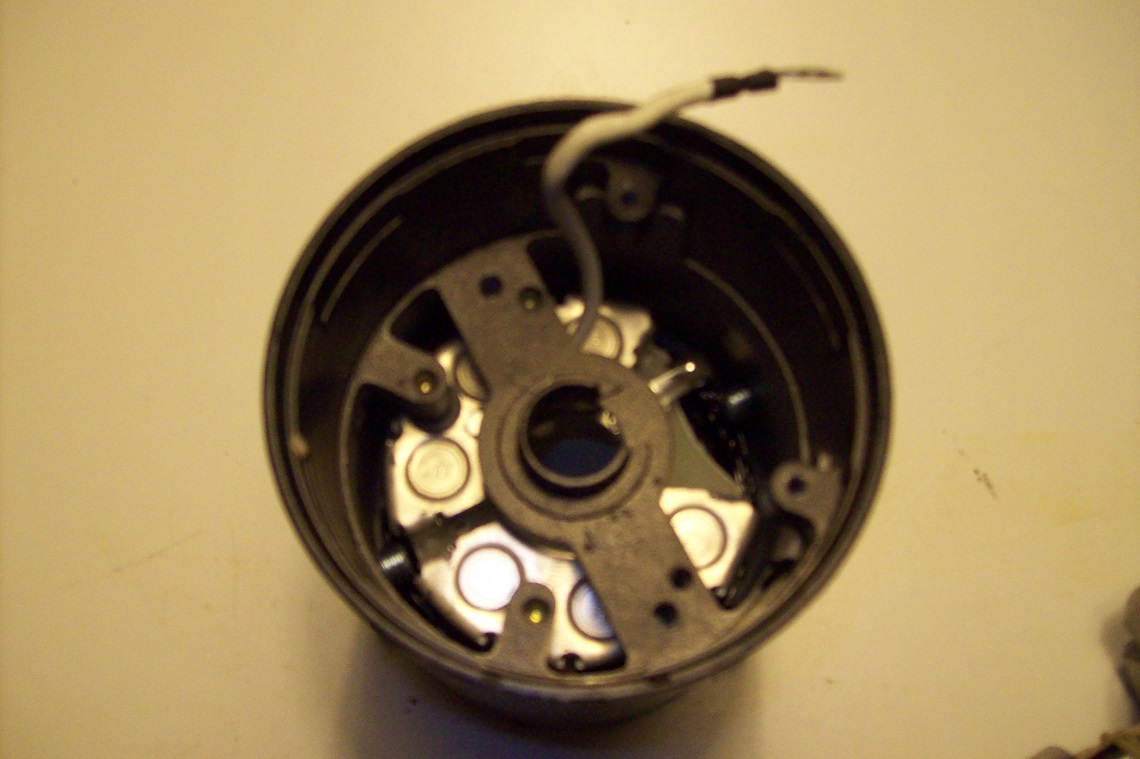

0001.jpg0001.jpg looking down the rear of the housing, the circular bearing support is in the center and the silver rectifier is visible.  In this case, the rectifier is grounded to positive and the white wire is negative for a positive grounded vehicle.  The negative ground alternator is grounded to negative and the white wire would be positive.  This is the only real difference between the two units.

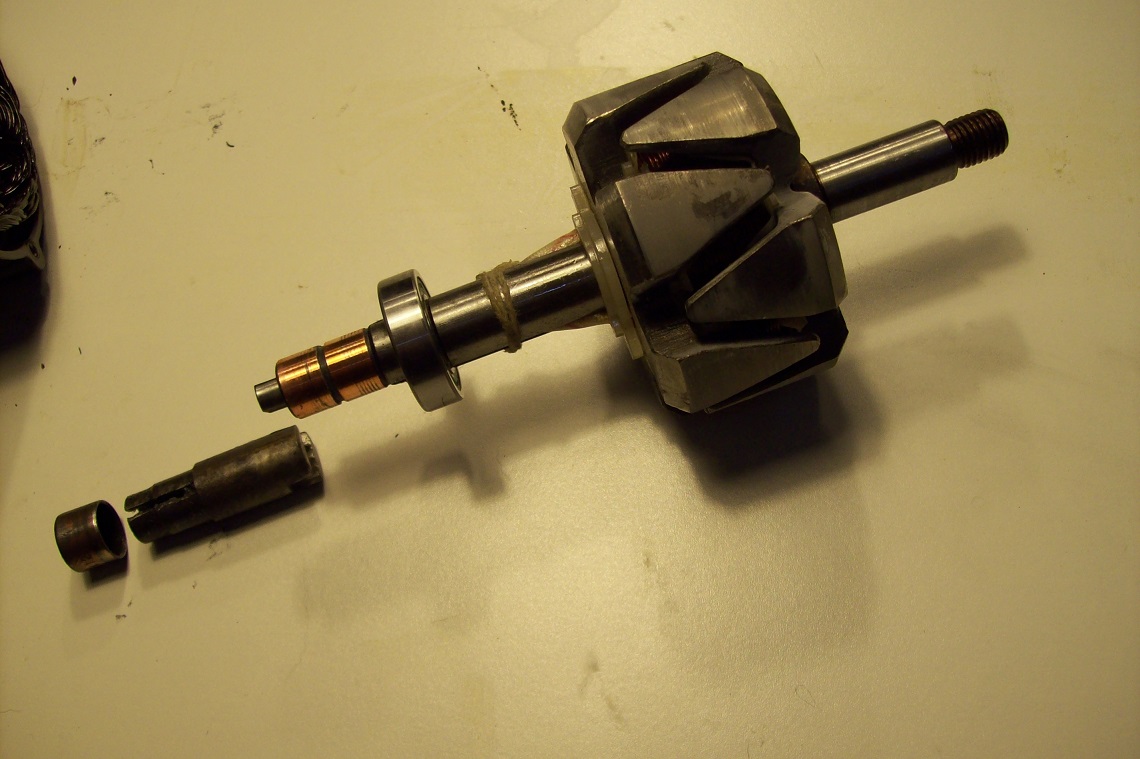

8.jpg 8.jpg  rotor with field windings, tach drive shaft, bushing.  Note that the part of the stub shaft that rides in the bushing is cut on both sides.  Not an ideal configuration for a bearing surface.

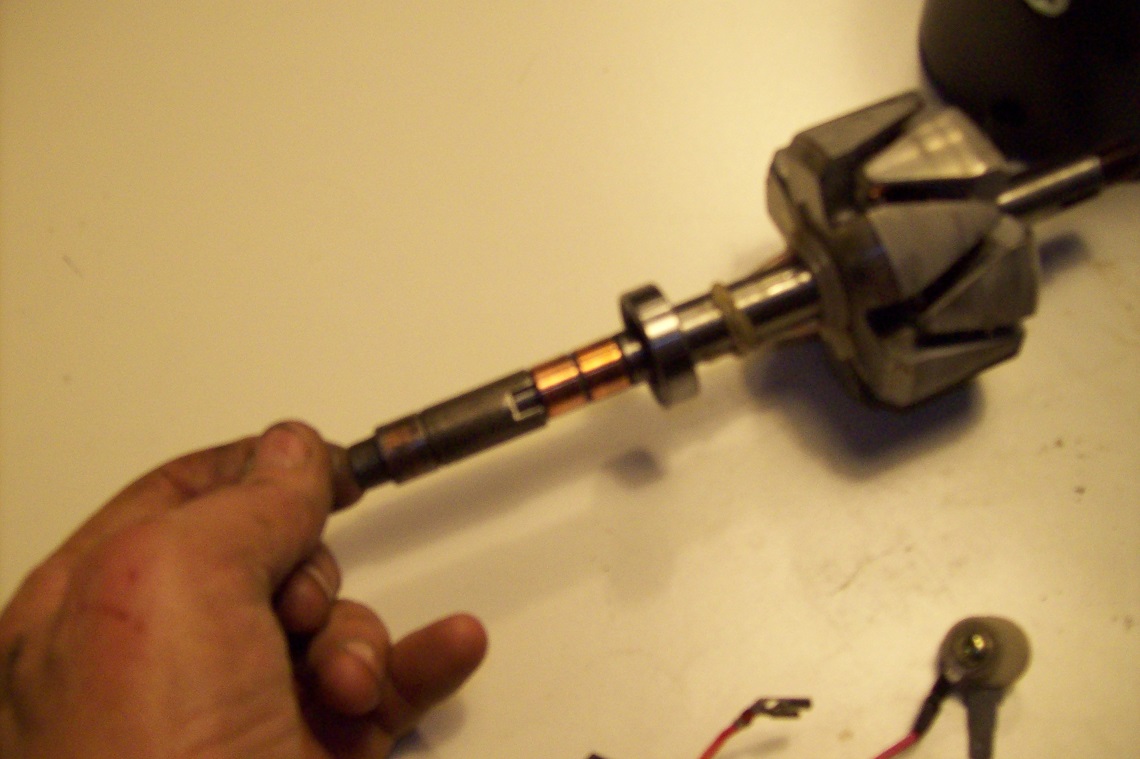

0003.jpg0003.jpg  rotor with stub shaft engaged via tang and slot.  Note there is no support on that end of the stub shaft and there is a lot of slop.

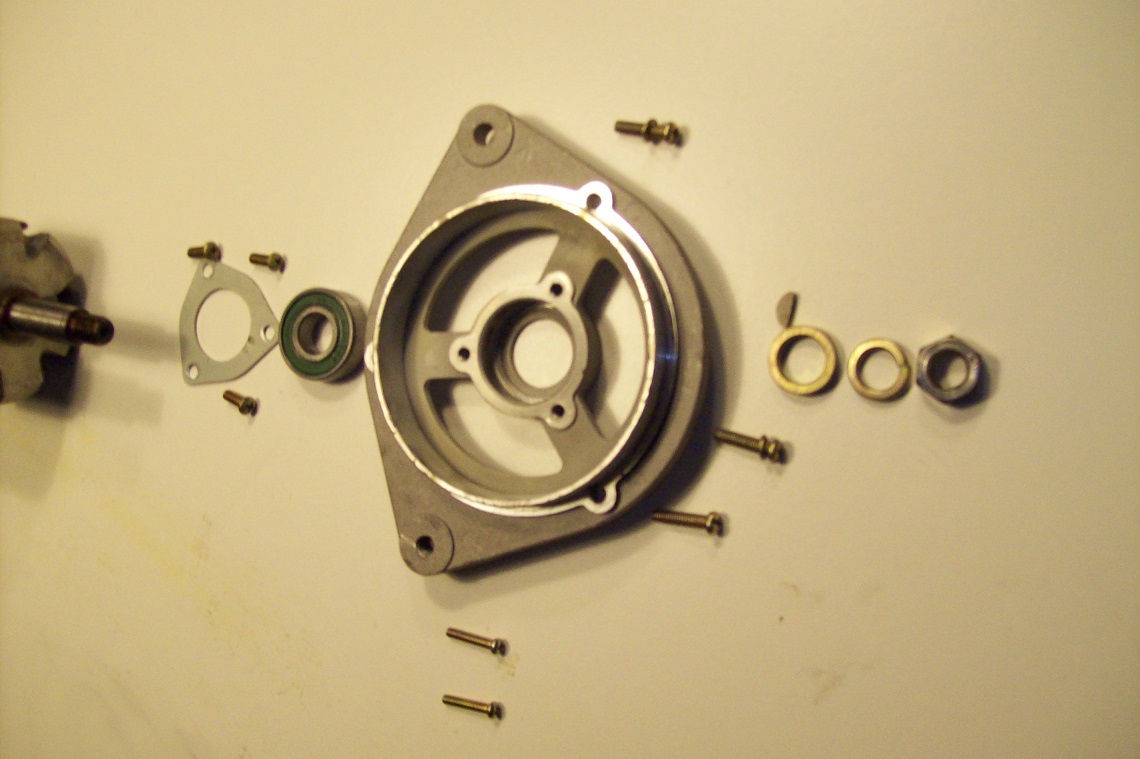

7.jpg7.jpg front bracket with rotor bearing and hardware.

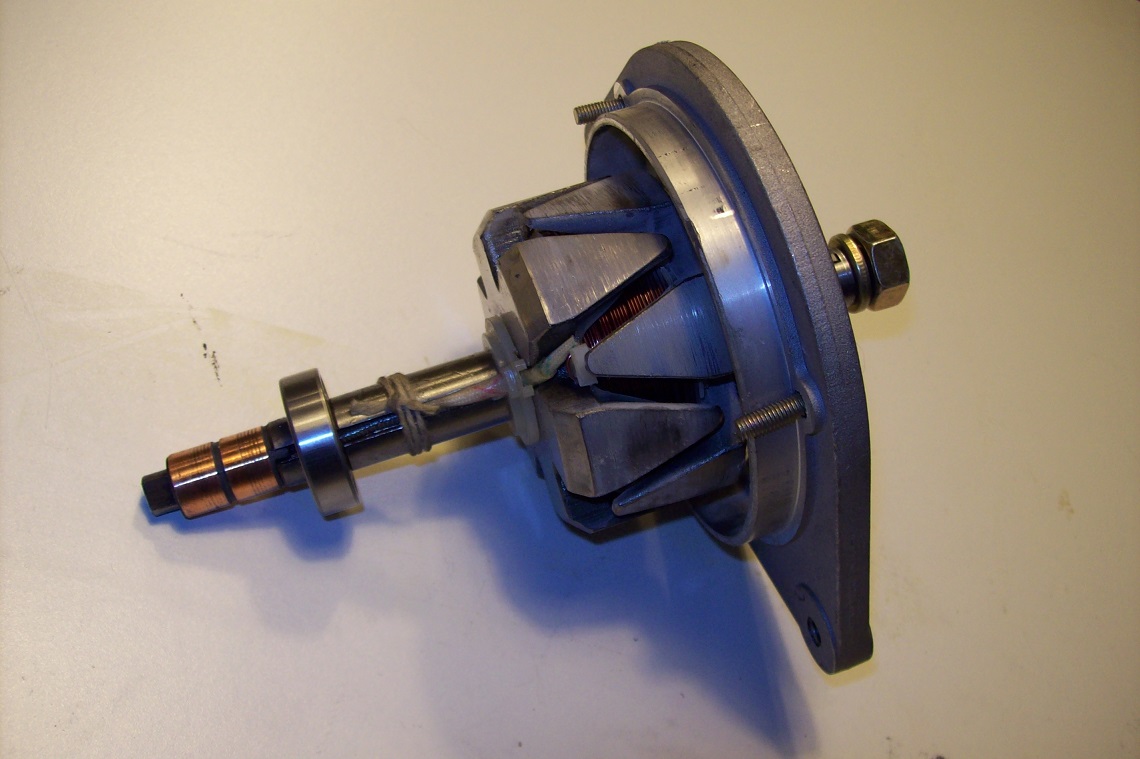

0006.jpg0006.jpg  rotor and front bracket assembled.







The one nice thing about alternators is the thin wires of the field windings don't require hardly any current so the brushes and slip rings have life easy.  A DC generator has the heavy armature current course through the brushes and commutator on the shaft.  But neither set of brushes last forever.  If the alternator brushes were as heavy duty as the generators, they might never need replacing.  There are brushless alternators.
